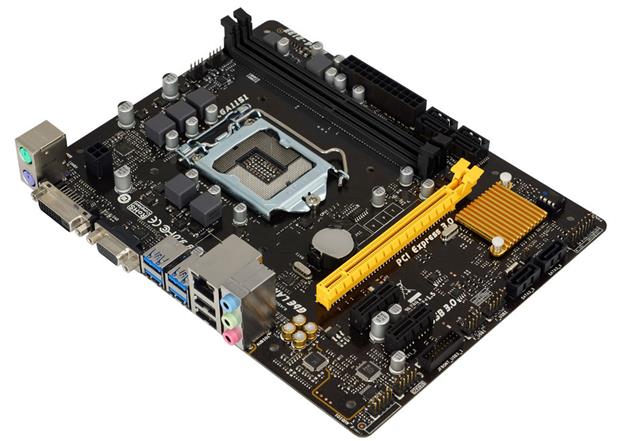

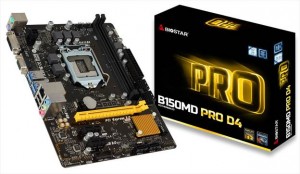

BIOSTAR B150MD PRO D4 Motherboard Announced

PRO Series motherboard with super durable features designed for business and entertainment

BIOSTAR is proud to announce another addition to its superb PRO Series of motherboards with the BIOSTAR B150MD PRO D4. Designed for business and entertainment, the BIOSTAR PRO series features fit nicely in any environment requiring absolute stability and durability and this is exactly where the PRO series shine. Utilizing DDR4 memory, upgraders and system builders can now take advantage of the benefits of this new standard for memory.

image008-1

The BIOSTAR B150MD PRO D4 supports the latest 6th-generation Intel Core processors as well as the upcoming, next-generation LGA 1151 processors. The board uses the Intel B150 chipset and image001-22supports DDR4-2133 and DDR4-1866 memory modules of up to 32GB capacity. Key to the Intel B150 chipset is its support for Intel’s Small Business Advantage feature set which allows small businesses out-of-the-box security and productivity enhancements.

For further enhancements for durability and stability, the board integrates the core features of the BIOSTAR PRO series notably the Tough Power Enhanced power design for improved stability and for entertainment applications, BIOSTAR’s AudioArt capacitors deliver an incredible listening experience versus similar motherboards.

The BIOSTAR B150MD PRO D4 strikes a perfect balance of price and features. Allowing support for modern technology, users now gain the benefit of modern standard to help them setup a robust and reliable system for their daily needs for both work and entertainment.

BIOSTAR PRO Series Features

Audio Art Capacitors – high-end Japanese Nichicon audio capacitors bring audio to life to offer a whole new artistic dimension and clarity to your listening experience.

Tough Power Enhanced – high-endurance power design allows the BIOSTAR PRO series motherboards to endure high-current with consistent full energy output without additional energy loss.

Super LAN Surge Protection – BIOSTAR adds another layer of protection to your motherboard by providing a more advanced LAN port with anti-static protection via an integrated chip to improve electrical stability and prevent damage via lighting strikes and power surges. SLSP (Super LAN Surge Protection) series motherboard improves the standard of system protection up to 4x that of other boards.

BIOSTAR 6+ Experience

The new BIOSTAR PRO Series will carry on the exclusive BIOSTAR 6+ Experience feature set which delivers the best BIOSTAR has to offer: Speed+, Audio+, Video+, Durable+, Protection+ and DIY+.

Free Protection for your System

BIOSTAR is teaming up with security software BullGuard to offer users free antivirus software via the official BIOSTAR website. Visit BIOSTAR website and download the BullGuard antivirus software completely free.

Specification

Chipset Intel B150
CPU SUPPORT Intel® Core™ i7 LGA 1151 Processor
Intel® Core™ i5 LGA 1151 Processor
Intel® Core™ i3 LGA 1151 Processor
Intel® Pentium® LGA 1151 Processor
Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91Watt
MEMORY Support Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot
2 x PCI-E x1 3.0 Slot
STORAGE 6 x SATA3 Connector
USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111H – 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC887 8-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )
BUNDLE SOFTWARE BullGuard
BIO-Remote2
Smart Speed LAN
FEATURES Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
