BIOSTAR introduces the H310HMC2 and H310HMD PRO2 entry-level motherboards with a new BOS for improved performance in gaming and VR with Windows 7 compatibility. Powered by the Intel H310 chipset, the motherboards offer gamers a well-balanced set of premium features typically found in higher-end motherboards such as a high-speed 10Gb/s M.2 support (H310HMD PRO2 only), ultra-fast USB 3.1 Gen1 ports, immersive 7.1 high-definition audio and HDMI connectivity at an affordable price range.
Maximize the Gaming Experience with On-board M.2

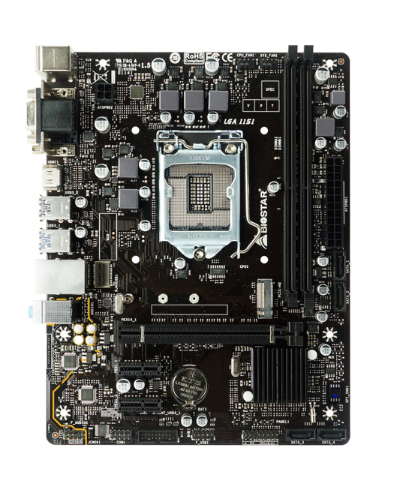

The BIOSTAR H310MHD PRO2 is a micro-ATX motherboard that features the Intel H310 chipset supporting the 8th generation Intel Core processors. Optimized for high-intensive applications such as gaming, VR and video editing, the new H310MHD PRO2 has added a super speed 10Gb/s M.2 support that for high-performance PCI-Express solid-state drives. Its dual-channel memory supports up to 32GB DDR4 memory capacity and up to 2666MHz frequency. The Gigabit LAN powered by the Realtek RTL8111H network controller helps allocate bandwidth gaming network priority. The H310MHD PRO2 delivers crystal clear audio through its Realtek ALC887 8-channel high-definition audio codec with AudioArt Capacitors. It also packs high-speed connectivity via its four USB 3.1 Gen1 Type-A ports, two at the rear I/O and two via the front panel internal header. The BIOSTAR H310MHD PRO2 also features BIOSTAR’s exclusive Durable+ and Protection+ premium features to gaming under any conditions, including Moistureproof PCB, Super Anti-Surge Protection, Super LAN Surge Protection, and ESD Protection. HDMI connectivity for resolutions up to 4096*2160@24Hz. In addition, the newly updated BIOS allows for full Windows 7 support.

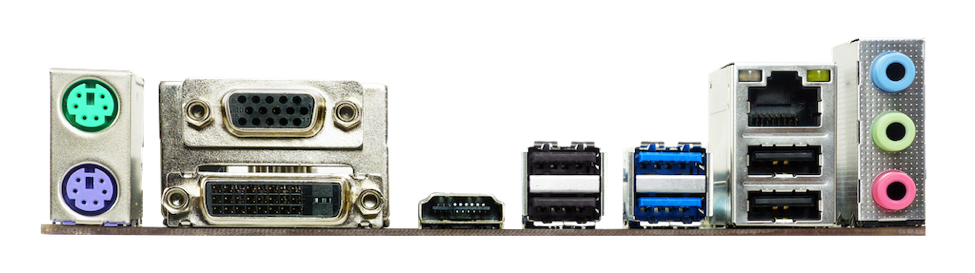

The BIOSTAR H310MHD PRO2 rear I/O packs 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.1 Gen1 Ports, 4 x USB 2.0 Ports, 1 x HDMI Connector (up to 4096×2160@24Hz resolution), 1 x DVI-D Connector (up to 1920×1200@60Hz resolution), 1 x VGA Port (up to 1920×1200@60Hz resolution), 1 x GbE LAN port, and 3 x Audio Jacks.

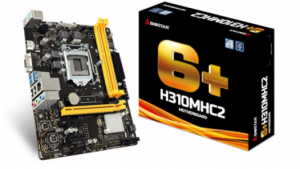

H310MHC2 Micro-ATX motherboard:
Feature packed Coffee Lake System with Windows 7 Support

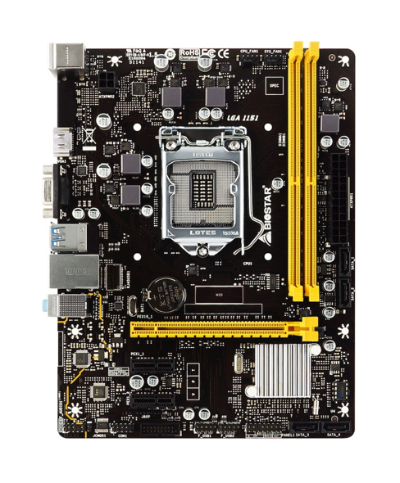

The BIOSTAR H310MHC2 micro-ATX motherboard features the Intel H310 chipset that supports the 8th generation Intel Core processors. It supports dual-channel DDR4 memory of up to 32GB capacity and up to 2666MHz, with a single PCI-express 3.0 x16 slot for high-performance gaming graphics cards. The Gigabit LAN powered by the Realtek RTL8111H network controller helps allocate bandwidth gaming network priority. There is super high-speed connectivity via USB 3.1 Gen1 interface, two on the rear I/O and another two via the internal header. It also delivers immersive gaming audio with its 7.1 high-definition audio channel powered by the Realtek ALC887 audio codec driver and HDMI connectivity for resolutions up to 4096*2160@24Hz. The motherboard comes with newly updated BIOS fully supports for Windows 7.
The BIOSTAR H310MHC2 rear I/O packs 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.1 Gen1 Ports, 2 x USB 2.0 Ports, 1 x HDMI Connector (up to 4096×2160@24Hz resolution), 1 x VGA Port (up to 1920×1200@60Hz resolution), 1 x GbE LAN port, and 3 x Audio Jacks.
The updated BIOSTAR H310MHC2 and H310MHD PRO2 motherboards offers a great balance of features to building a gaming and VR-capable desktop PC at a very affordable price point. Enjoy immersive gaming audio with the Realtek ALC887 8-Channel HD Audio codec and high-quality AudioArt Capacitors. Experience high-performance gaming with faster loading times using high-speed M.2 PCI-express SSDs via the M.2 10Gbps slot of the BIOSTAR H310MHD PRO2 motherboard.
Windows 7 Support
-
BIOSTAR Guide for installing Windows 7 via a USB Drive:
-
Download WindowsTool
-
Connect USB drive to computer
-
Follow steps here or steps on the Intel website
-
-
Installing Windows 7 and Onboard Drivers via a USB Drive
-
Install Windows 7 using the USB drive. Turn on system and press “F9” (note: Intel H310 does not provide Onboard VGA driver for Windows 7)
-
Enter OS and install Windows 7 driver:
-
Use the RI9.05B or later Driver CD version
-
Install Hot Fix for TPM2.0
-
Install Hot Fix for ME
-
Install Hot Fix for NET Framework 4.5.1
-
-
Install motherboard onboard drivers provided in the box (use the DVD Driver CD (RI9.05B or later version))
-
After installation, restart the computer.
-
