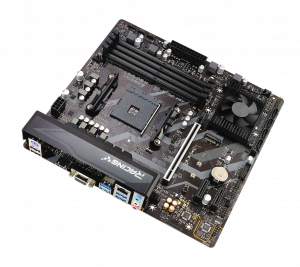

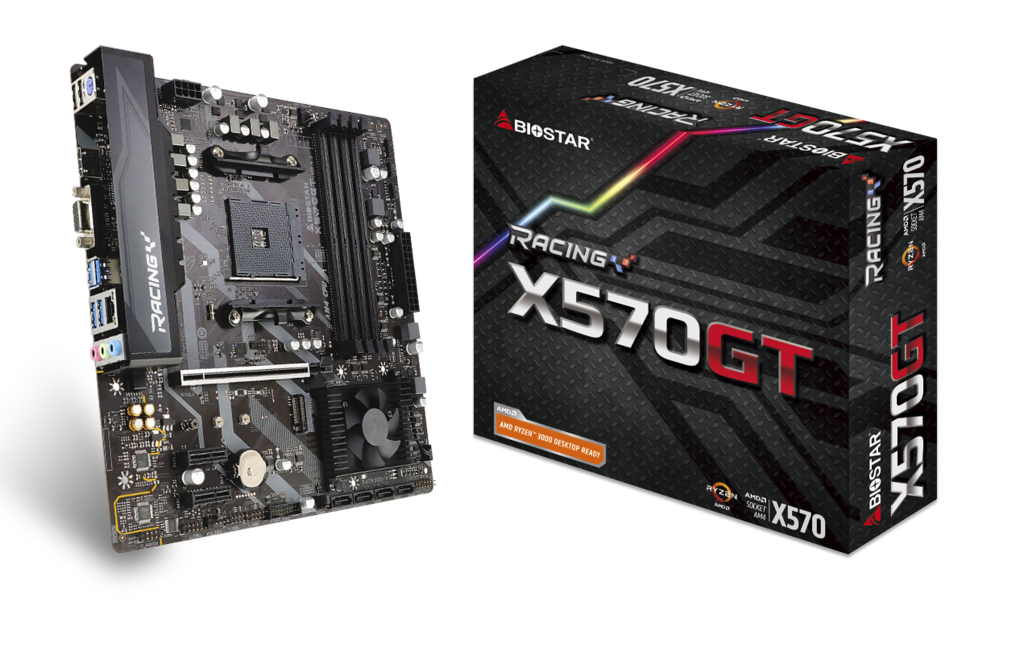

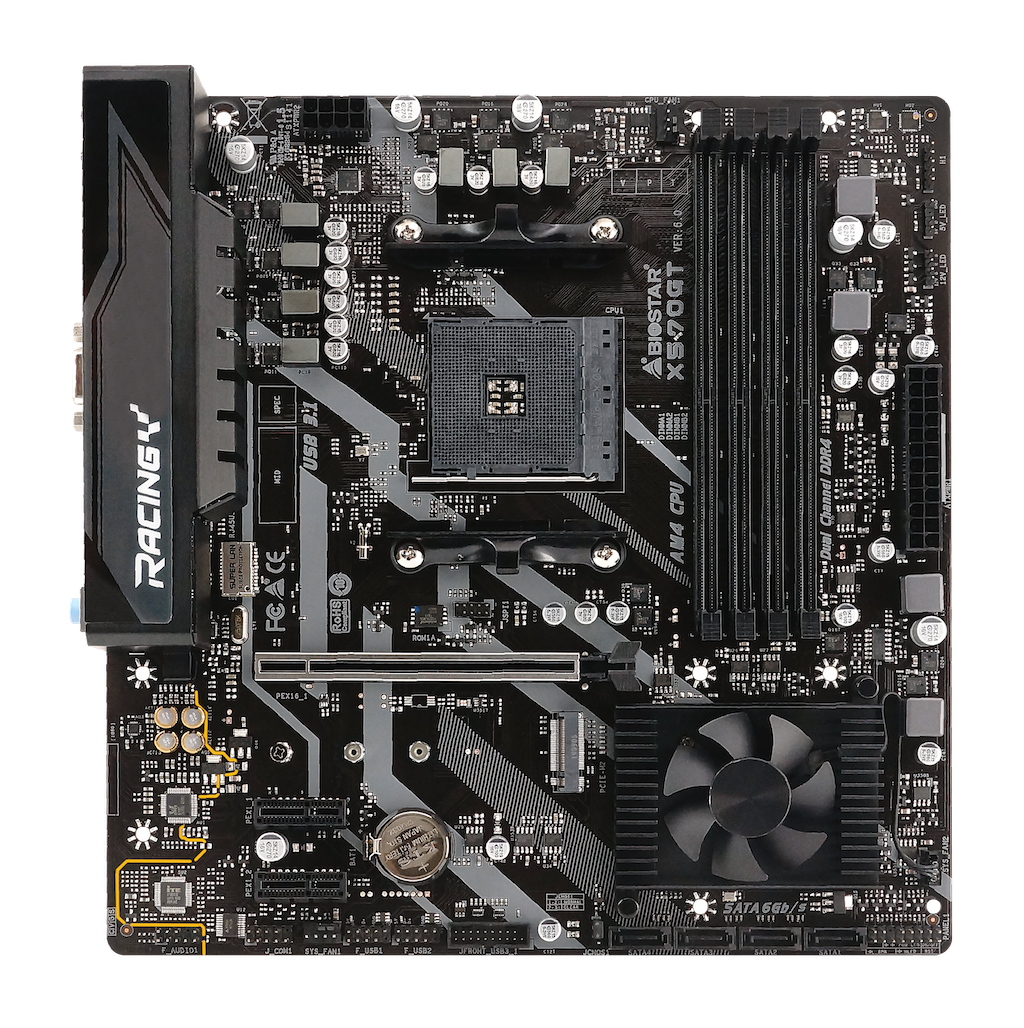

BIOSTAR, a leading manufacturer of motherboards, graphics cards, and storage devices, is proud to launch the latest addition to its 4th generation of RACING motherboards with the compact yet very capable BIOSTAR RACING X570GT. Aimed at gamers who don’t want to compromise on their gaming experience and overclockers looking for that extra push of performance, the RACINGX570GT is the motherboard that supports a lightning-fast and ultra-responsive gameplay experience. The RACING X570GT is tastefully designed with the iconic RACING Gen 4 features and grey lightning strikes that give the users the competitive edge needed to defend themselves in the gaming world.
The BIOSTAR RACING X570GT, equipped with the latest X570 chipset for AMD socket AM4, brings support for 3rd Gen Ryzen processors, and provides PCI-e 4.0, which doubles the bandwidth of PCI-e 3.0. It also supports 4-DIMM DDR4. In order to provide the user with the best compact gaming machine possible, the RACING X570GT also features USB 3.1 Gen1 support (5 Gb/s), PCI-e M.2 4.0 support (64 Gb/s), as well as HDMI 4K resolution. And with overclockers in mind, up to 128GB of DDR4 memory spread over the 2-DIMMs can support overclocks of 4000+MHz for unparalleled responsiveness.
Feature Highlights
AMD X570 ChipsetAMD X570 is the high-end chipset for overclockers and tweakers who need a robust platform. This chip provides the ultimate low-level control to its users and delivers ultimate graphics card bandwidth. |
|
PCI-E 4.0PCI-E 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled that of PCI-E 3.0, while preserving compatibility with software and mechanical interfaces. |
|
PCI-E M.2 4.0PCI-e M.2 4.0 is the latest storage interface, it delivers the highest bandwidth and lower latency. It’s two times faster compared with PCI-e M.2 3.0. |
|
DDR4 MemoryDDR4 Memory delivers higher performance, higher DIMM capacities, improved data integrity and lower power consumption. Raising up to 128GB the maximum capacity and 4000+(OC) MHz of DDR4 memory for multi-applications and better performance. |
|
Iron Slot ProtectionBIOSTAR’s exclusive Iron Slot Protection can reinforce PCI-E x16 slots to handle heavier graphics cards, prevent bending, and extend longevity of the slot, making the new-gen BIOSTAR RACING series motherboard much more robust. It is a necessary feature for content creators to set up the ultimate content creation studio rig and it is also important for gamers who want to play games that need to go heavy on graphics. |
|
Super LAN Surge ProtectionSuper LAN Surge Protection provides LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges. |
|
RACING ArmorThe new RACING Armor comes with I/O Armor and Audio Armor to protect I/O interfaces from static electricity. |
|
VIVID LED DJAdjusting the color of LED and changing system colors by VIVID LED DJ gives the users complete control over the process of PC modding, helping to develop their personal style. Users can fully customize the on-board LEDs, as well as the external LED devices such as LED strips, LED fans, and RGB LED memory modules. |
|
RAZER ChromaCompatible BIOSTAR RACING motherboards utilize BIOSTAR VIVID LED DJ to sync with Razer Chroma. Combined together, gamers can embrace full immersion into their adventures with the systems light synched to the in-game effects, providing instant feedback to every action and event. |
|
LED Rock ZoneLED ROCK ZONE comes with an RGB 12V LED header and a Digital 5V LED header which offers more colorful lighting options to DIY lovers. |

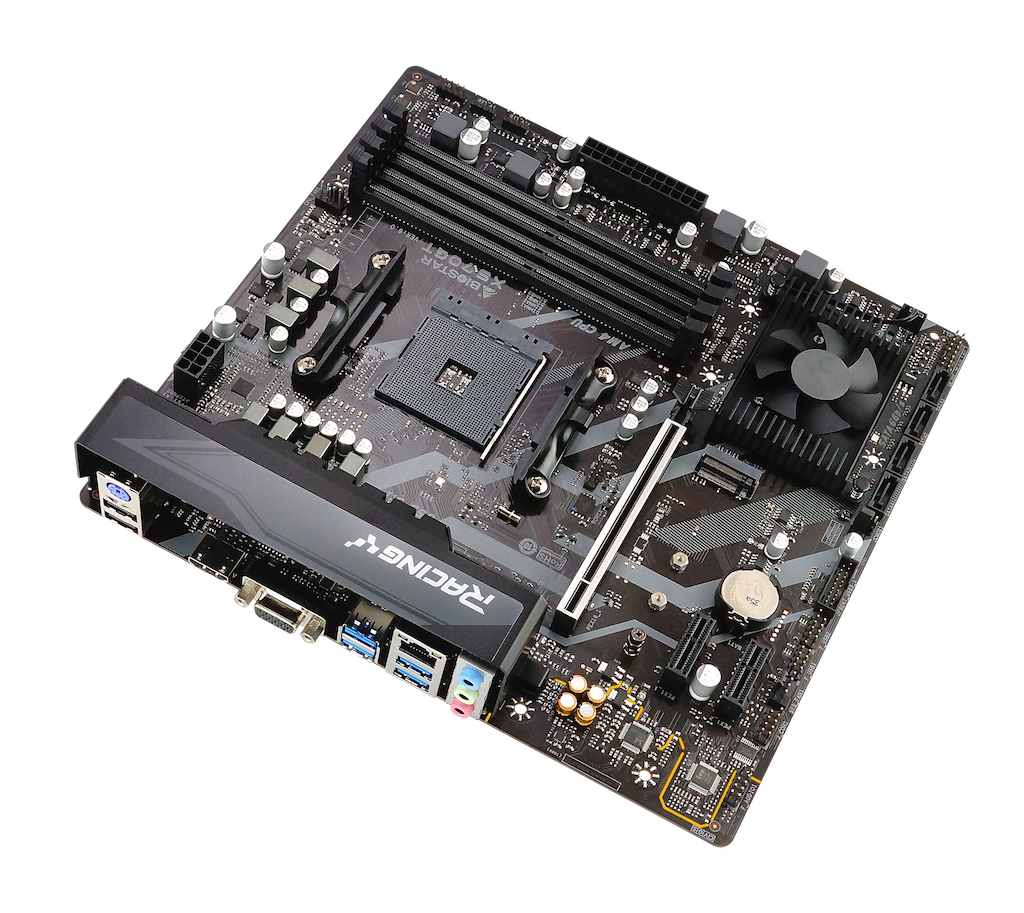

The BIOSTAR RACING X570GT rear I/O features: 1 x PS/2 Keyboard/Mouse, 1 x HDMI Port, 1 x VGA Port, 1 x GbE LAN port, 4 x USB 3.1 Gen1 (5Gb/s) Ports, 2 x USB 2.0 Ports and 3 x Audio Jack.
A design for gamers
Sporting the unique new RACING Gen 4 grey Lightning Strikes design from BIOSTAR and built on a Micro ATX form factor that can fit in almost every case, the BIOSTAR RACING X570GT is the perfect motherboard for the gamers looking to carry their PC around to LAN parties while keeping a competitive edge with its high-performance features, and create a unique ID for their build with it’s pleasing aesthetics and customizable LEDs.
Specifications
Chipset |
AMD X570 |
CPU SUPPORT |
Socket AM4 supports 3rd and 2nd Gen AMD Ryzen / 3rd and 2nd Gen AMD Ryzen with Radeon Vega Graphics processorsMaximum CPU TDP (Thermal Design Power): 105Watt |
MEMORY |
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000+(OC)4 x DDR4 DIMM Memory Slots, Max. Supports up to 128 GB MemoryEach DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module*DDR4 – 2667 only for Ryzen CPU |
INTEGRATED VIDEO |
By CPU model
|
STORAGE |
4 x SATA III Connectors (6Gb/s): Supports RAID 0, 1, 101 x M.2 (Key M) Slot (PCI-E-M2):Supports M.2 Type 2242/ 2260/ 2280 SSD moduleSupports SATA III (6.0Gb/s) SSDSupports PCI-E Gen4 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse |
LAN |
RTL8111H10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capabilitySupports Super LAN Surge Protection |
CODEC |
ALC8877.1 Channels, High Definition Audio, Hi-Fi (Front) |
USB |
6 x USB 3.1 Gen1 (5Gb/s) ports (4 on rear I/Os and 2 via internal headers)6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
EXPANSION SLOT |
2 x PCIe 3.0 x1 Slots1 x PCIe 4.0 x16 Slot (PEX16_1)*Note: Supports x16 lanes with AMD Ryzen 2nd and 3rd Gen processorsSupports x8 lanes with AMD Ryzen with Radeon Vega Graphics processors*According to different CPUs will have different speeds*Note: PCIe 4.0 speed only for AMD Ryzen 3rd Gen Matisse |
REAR I/O |
1 x PS/2 Keyboard Port1 x HDMI Port1 x VGA Port1 x LAN port4 x USB 3.1 Gen1 (5Gb/s) Ports2 x USB 2.0 Ports3 x Audio Jack |
INTERNAL I/O |
4 x SATA III (6.0Gb/s) Connectors2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)1 x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x System Fan Connector(Southbridge Heatsink Fan Header: This connector is only available for Southbridge Heatsink Fan.)1 x Front Panel Header1 x Front Audio Header1 x Clear CMOS Header1 x COM Port Header2 x LED Headers (12V / 5V) |
DIMENSION |
Micro ATX Form Factor Dimension: 243.95mm x 235mm ( W x L ) |
OS SUPPORT |
Supports Windows 10(64bit)*BIOSTAR reserves the right to add or remove support for any OS with or without notice. |
BUNDLE SOFTWARE |
Racing GT EVO UtilityBullGuard |
ACCESSORIES |
2 x SATA Cables1 x I/O Shield1 x DVD Driver1 x Quick Guide |
