Rolling stock operators today are seeking for intelligent solutions that enable premium services for the satisfying passenger
experience and real-time communication/control for optimal operation efficiency. To meet the demands of highly reliable and scalable communications systems under harsh environment, at InnoTrans 2016, Lanner will showcase its LVR-8300, a fanless highly modularized 3U rail communication system packing with EN50155 compliant endurance, high performance CPU, multiple M12-protected I/O modules and an abundance of data storage spaces, making it an ideal railway/MRT communication system to operate as the brain of intelligent rolling stock.
Highly Modular Railway PC Lanner LVR-8300 Assured 24/7 reliability, wide range operating temperature and long-time vibration endurance are major concerns for rolling stock business and LVR-8300 has been EN50155 complaint for endurances against shock, vibration, temperature (-20~60°C), humidity and surge.

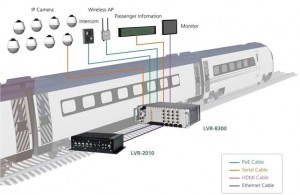

With the 4th Generation Intel® Core™ i5 4422E CPU (codenamed Haswell), Lanner LVR-8300is able to handle high-volume data transmissions and process multimedia contents efficiently. LVR-8300 also features up to 16x M12 PoE ports which allow easy integration of networking devices such WiFi access points and/or PoE surveillance camera for in-train WiFi sharing and remote video surveillance and monitoring applications.
LVR-8300 is a highly scalable system with 4 modular expansion slots for Internet access, sensors connectivity, passenger information, wayside communications and on-board train management. These modules provide diverse I/O configurations, including serial COM, GPIO, USB, VGA/HDMI and the mini-PCIe sockets designed with SIM card readers for WiFi/3G/LTE connectivity. To store the large volume of video contents from infotainment or surveillance systems, LVR-8300 also offers 4 swappable 2.5” drive bays for video data storage.

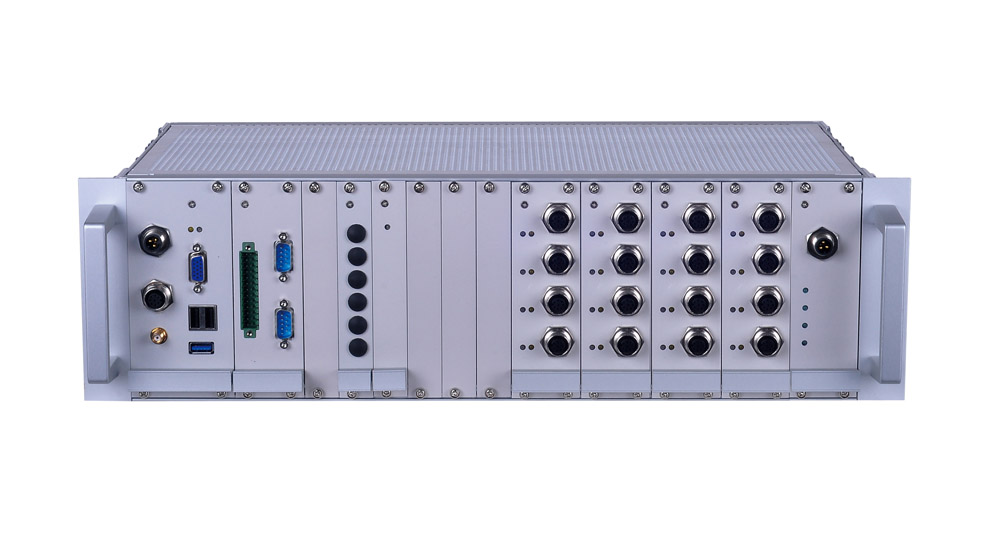

LVR-8300
High Performance Fanless Rackmount Railway Computer with Intel Core i5-4422E or Celeron 2002E CPU
- Intel® Core™ i5-4422E or Celeron 2002E processor with QM87 chipset
- Compliant with EN50155 and MIL-STD-810G standard
- 16 x rugged M12 PoE ports
- 3 x Mini-PCIe slots with 2 SIM card readers
- Wide range operating temperature from -20 to 60°C
- 4 x Swappable 2.5” drive bays
- Onboard GPS receiver module and G-sensor
- Rich I/O: 2 x USB 2.0, 1x USB 3.0, 2 x COM, GPIO, VGA
- Rackmount 3U form factor
