Lanner Introduces Its Most Compact Industrial-Grade Box PC LEC-3030 Series For IoT Applications

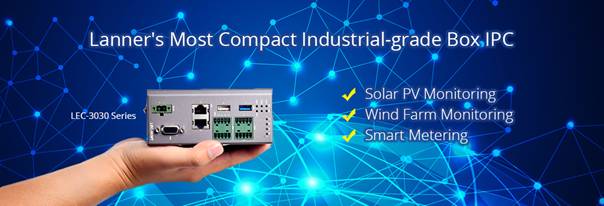

image002 (16)

With the increasing emphasis on space efficiency in commercial applications, such as solar PV monitoring, wind turbine, smart meter and renewable energy, Lanner introduces LEC-3030product series, so far the most compact industrial-grade DIN Rail box PC for industrial communications by Lanner. LEC-3030 is driven by Intel dual-core SoC CPU and supports 4GB DDR3L 1,333MHz SO-DIMM memory. LEC-3030 also comes with various features including ESD/surge protected COM and LAN ports, VGA display, DIN Rail and wallmount options and wide range of operating temperatures.

LEC-3030 series is designed in an ultra compact form to meet the demand of space-efficiency in today’s industrial applications. Though in compact size, LEC-3030 provides various functional features including 2 x isolated (15KV ESD and 2KV digital) COM (RS-232/422/485), 2 x isolated (1.5KV magnetic) GbE LAN ports, 4 x DI/DO digital input/output, 2 x USB and 1 x VGA display port.

Architecture wise, LEC-3030 series is empowered by Intel dual-core Celeron N2807 CPU and supports 4GB DDR3L 1,333MHz SO-DIMM memory. With such platform design, LEC-3030 is designed to optimize power and performance ratio.

In terms of environmental reliability, LEC-3030 series supports wide operating temperature with a wide range of -40 to 70℃. Together with DIN Rail mounting and steel/aluminum enclosure, LEC-3030 series is the optimal solution for industrial applications such as solar PV monitoring, wind farm, energy meters and other mobile IoT deployments.

LEC-3030

image003 (31)Compact Industrial Grade DIN Rail Box PC with Intel® Celeron® N2807 Processor

  • Compact-sized industrial grade box PC

  • Dual-core Intel Celeron N2807 SoC CPU

  • ESD/surge protection on serial COM ports for harsh environments

  • Wide operating temperature (LEC-3030T:-40~70°C)

  • Fanless design with corrugated aluminum

  • Support VGA display output

  • DIN-Rail or wall mounting options

  • Support 4x DI/O

  • Dual GbE LAN ports, 1 x USB 2.0, 1 x USB 3.0 port

  • 1 x SATA port
