Lanner Introduces Its New Ultra-compact Multi-Service Gateway NCA-1020

Lanner Introduces Its New Ultra-compact Multi-Service Gateway NCA-1020

The explosion of mobile client devices has driven the needs for edge security computing and CPE.To address this demand, Lanner launches its NCA-1020, a compact desktop appliance empowered by Intel® Celeron® Processor N3010 (codenamed Braswell) for deployment at edge environment,branch offices, and retail surroundings. Besides the low power consumption and decent processing capability, NCA-1020 also provides necessary I/O functionality for edge computing,multi-service gateways, VPN routers and CPE applications.

Lanner’s NCA-1020 is the next-generation model of its ultra-compact predecessor NCA-1010 and empowered by the latest 14nm Intel platform codenamed Braswell, designed for power efficiency and processing performance for entry-level computing applications. The core of NCA-1020 is Intel®Celeron® Processor N3010, offering low power consumption and decent computing performance optimized for CPE and edge computing needs. Besides, the process comes with security mechanisms including Intel® AES-NI new instruction set for network security. For memory, NCA1020 supports one DDR3L socket up to 8GB.

Designed for multi-service gateway, SME-style VPN router, and CPE applications, NCA-1020 comes with dual SMA antenna holes for wireless signal receptions. Internally, NCA-1020 is built with a mini-PCIe socket with SIM card reader for mobile connectivity. Networking I/O wise, NCA-
1020 provides 3 RJ-45 GbE LAN ports and one pair of Lanner’s Generation 3 LAN bypass to avoid traffic disruptions.

Other I/O functionality includes USB3.0/2.0 ports, HDMI display port, mini mSATA storage socket,TPM module and an optional SSD drive bay as the main storage (SKU A).

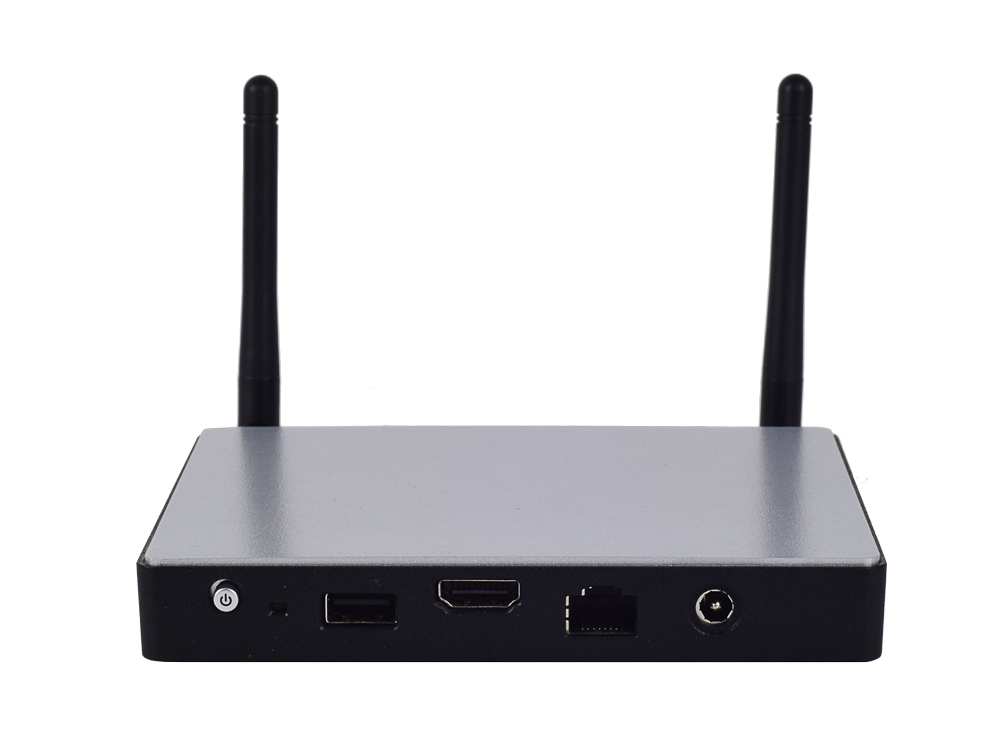

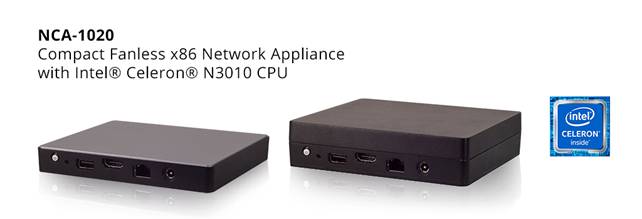

NCA-1020
Compact Fanless x86 Network Appliance with Intel® Celeron® Processor N3010

  • Compact form factor
  •  Intel® Celeron® Processor N3010 (formally code name: Braswell)
  •  1 x DDR3L SODIMM up to 8GB
  •  Fanless design
  •  Built-in security engine: hardware assisted AES-NI
  •  3 x RJ45 GbE LAN ports, optional 1-pair bypass (NCA-1020A)
  •  1 x USB 3.0, 1 x USB 2.0, 1 x HDMI port
  •  1 x full-length mini-PCIe slots with SIM slot for mobile connectivity
  •  1 x mini mSATA socket, optional 1 x SSD drive (NCA-1020A)
  •  2 x antenna holes
