Now extend PoE distance upto 300 Meter with Edimax GP-101ET PoE Extender

It’s a profound PoE extender which helps customers to capitalize Ethernet technology without distance limits

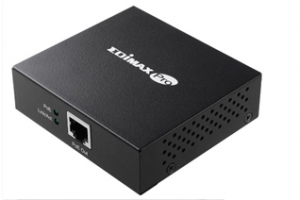

Edimax Technology, a leading provider of premier networking solutions introduces Edimax GP-101ET Gigabit PoE+ Extender which increase the capacity up to 100 meters (328 ft.). It’s a 1-Port Gigabit PoE Extender with plug and play installation requiring neither configuration nor extra electrical power, making it an innovative and cost-effective PoE repeater.
“Edimax GP-101ET is a best in class solution which is especially designed in order to meet our customer’s expectations at affordable prices to provide scalability, effectiveness and upgrade powered devices for superior performance” said Sanjay Joshi, Country Manager at Edimax Technology.” It is highly reliable for all environments including enterprises, hospitality, institutions, etc. where performance is critical for different business applications and 100 meter PoE distance hurdles, now a PD can go upto 300 meter distance from the PoE switch by using PoE extender.”

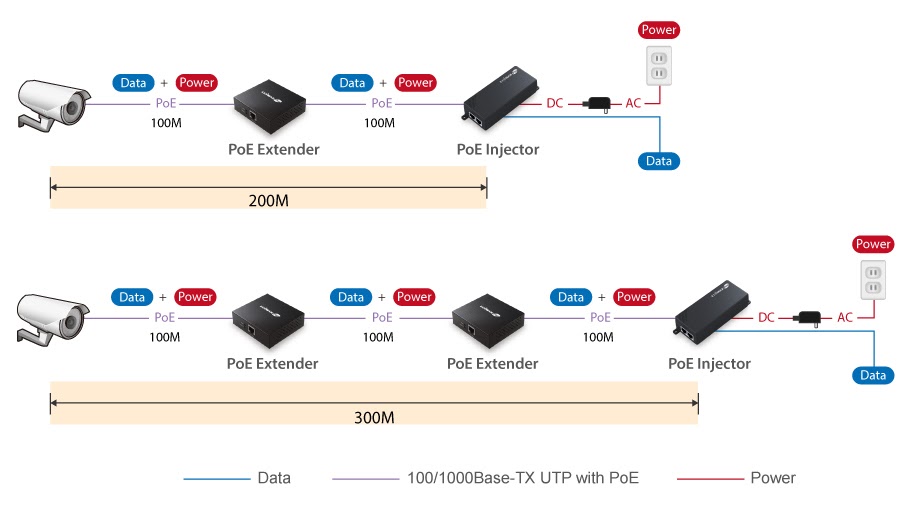

Edimax GP-101ET extender can be connected to any IEEE 802.3at/af end-nodes such as WLAN AP, network cameras, VoIP telephones and IP-based appliances where the IEEE 802.3at/af in-line PoE port is supported. It enables Ethernet cable to carry both data and power beyond the 100 meters limitation for another 100+100 meters. This reduces the need for installation and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place. It renders lower installation costs, simplified deployment efforts, no additional power supply or setup required for easy plug & play installation. Edimax GP101ET also features PoE short circuit protection to safeguard network devices and protect against damage.

Key Features:

  • Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) Standards

  • Gigabit LAN ports provide high-speed connectivity

  • PoE short circuit protection to safeguard network devices

  • Extends PoE connection for another 100+100  meters (328 ft.)

  • Reduces installation and equipment costs

  • Easy plug-and-play desktop or wall-mounted installation

Specifications:



HARDWARE

Ports

1 Port RJ-45 10/100/1000Base-T Input Port

1 Port RJ-45 10/100/1000Base-T PoE Output Port

LED Indicators

Link/ACT and PoE

Power Input

IEEE 802.3af, IEEE 802.3at

Power Consumption

1.2 Watts

Dimensions (L x W x H)

86.8 x 79.3 x 25.8 mm

Weight

200g

POWER OVER ETHERNET

Standard

IEEE802.3af and IEEE802.3at

Power Output

IEEE 802.3af

Pin Assignment

PoE Input Port: 1/2(+), 3/6(-) End-Span; 4/5 (+), 7/8 (-) Mid-Span

PoE Output Port: 1/2(+), 3/6(-) End-Span

PoE Power Output

15.4W (IEEE 802.3af)

ENVIRONMENT

Temperature

Operating: 0 – 40

Storage: -40 – 70

Humidity (Non-condensing)

Operating: 10 – 90%

Storage: 5 – 90%

STANDARDS COMPLIANCE

Standards

IEEE 802.3 10BaseT Ethernet

IEEE 802.3u 100BaseTX Fast Ethernet

IEEE 802.3ab 1000BaseT Gigabit Ethernet

IEEE 802.3af Power Over Ethernet (PoE)

IEEE 802.3at Power Over Ethernet Plus (PoE+)

Certifications

FCC, CE
