2 mins read

Same Cost, But Stronge Features (Transformed – TL-WR720N)

With 150Mbps wireless speeds and a new external antenna, TP-LINK’s TL-WR720Nis perfect solution for your sweet small Home

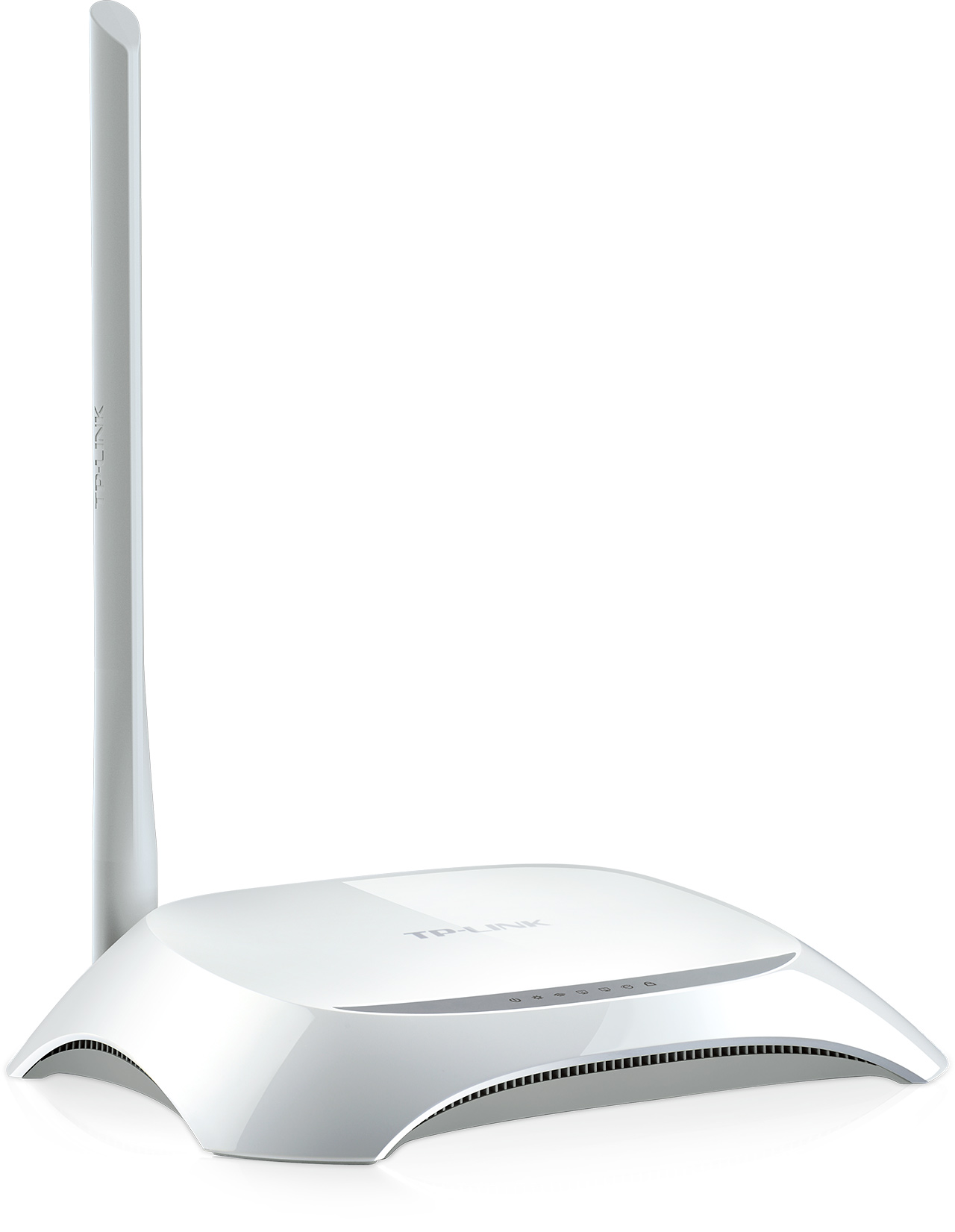

TP-LINK, a global provider of networking products, TL-WR720N(UN)2.0-L1-1280pxannouncedtheir latest 150Mbps router in India, the TL-WR720N 150MbpsWireless N Router. The TL-WR720N is a simple and secure way to share your high-speed Internet connection at Wireless-N speeds for surfing the Internet, email or online chat. Users can enjoy a high quality experience when video streaming, using VoIP, or gaming online wirelessly, not previously practical with 11g devices.

The TL-WR720N 150Mbps Wireless N Router provides up to 150Mbps wireless connection with other 802.11n wireless clients. The incredible speed makes it ideal for handling multiple data streams at the same time, which ensures your network stable and smooth. The performance of this 802.11n wireless Router will give you the unexpected networking experience at speed 650% faster than 802.11g. It is also compatible with all IEEE 802.11g and IEEE 802.11b products.

TP-LINK’s TL-WR720N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR720N gives users wireless performance at up to 150Mbps, 9X the speed and 4x the range of traditional 11g products. Enjoy N Power at a G Price!

TL-WR720N supports up to 4 SSIDs. Yes you heard it right 4! It’s uniquely designed for users to set up additional wireless networks with additional SSIDs and Passwords for guests or friends. This ensures users are safe and there are no performance conflicts with different networks.

Clear Channel Assessment (CCA) Technology automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.

With the TL-WR720N even novice users can setup their networks. No more confusion on how to set-up your router for the first timer. The device comes with a CD featuring an Easy Setup Assistant that leads users through the setup process step-by-step, and even helps with wireless network settings and security configurations.

Features

  •  Wireless speed up to 150Mbps

  • Easy wireless security encryption at a push of the WPS button

  • Supports Multiple SSIDs to separate different users within the same wireless network

  • WDS Wireless Bridge provides seamless bridging to expand the wireless network

  • IP based Bandwidth Control allows administrators to determine how much bandwidth is allotted to each PC

  • Live Parental Controls allow parents or administrators to establish restricted access policies for children or staff

Specifications

HARDWARE FEATURES
Interface 2 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS/Reset
External Power Supply 5VDC / 0.6A
Dimensions (W X D X H) 6.2 x 4.8 x 1.3 in.(158 x 122 x 32 mm)
Antenna 5dBi Fixed Omni Directional

WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 150Mbps
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

 Wireless Features:

SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond
Port Setting Server, Client, DHCP Client List, Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management

OTHERS
Certification CE, FCC, RoHS
Package Contents TL-WR720N
Power Supply Unit
Resource CD
RJ-45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft® Windows® 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Others:

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
