TP-Link Launches Archer D9

TP-LINK isabout to launch Archer D9 Dual Band Gigabit ADSL2+ Modem Router Exclusive on Amazon India, for Superfast Internet Connectivity in the Home and Office without hassle of External Modem.
No More need of purchasing a Modem to support your High-End Router, when you can get both features in one Router [First time ever in India

TP-LINK, the global provider of SOHO and SMB D9-03networking products, has announced the launch of its fastest-to-date dual band gigabit ADSL2+ Modem router: Archer D9on 5th Aug 2015 which will be Exclusive available on ‘Amazon India’. Archer D9 is one of a kind router High-End router currently available in India.Router is a combined wired/wireless network connection device with integrated wireless router and ADSL modem. Offering connectivity speeds of up to 1.9Gbps, the router is designed to provide superior Internet connectivity throughout the home for seamless online gaming, music and HD video streaming plus mobile connectivity.

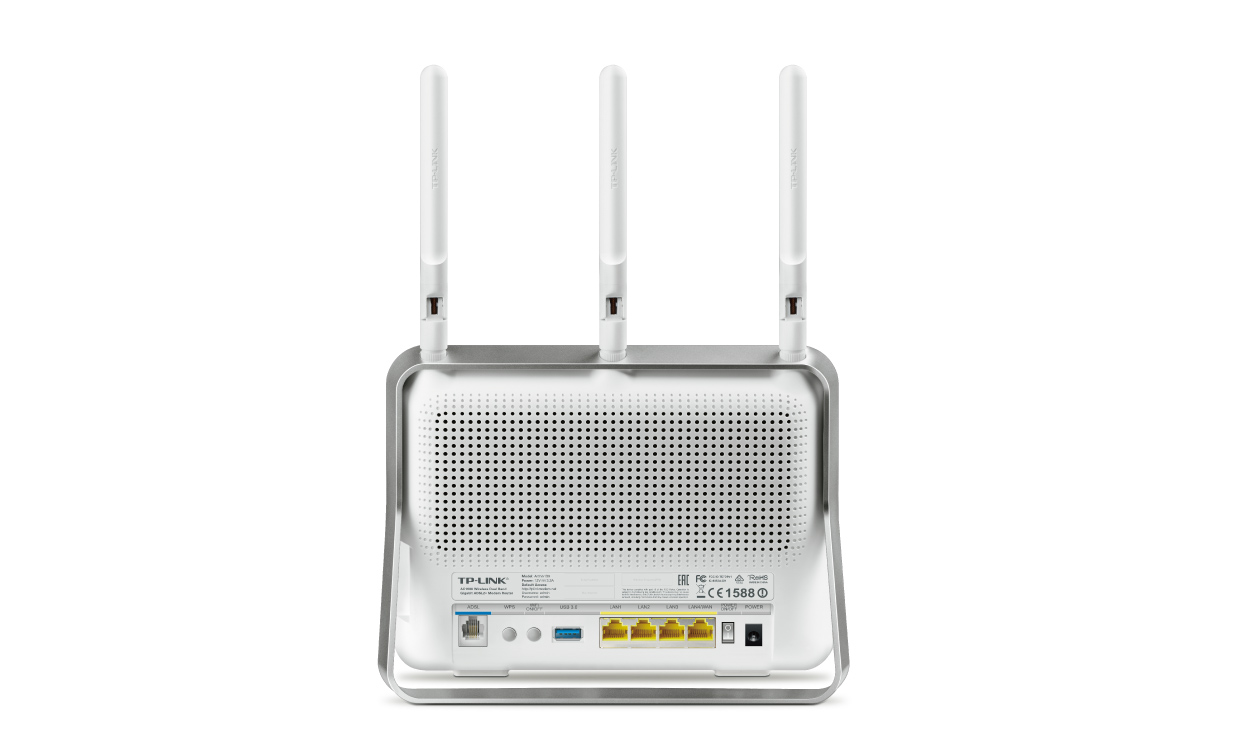

Certainly not in industrial design – the D9 comes in an attractive white and silver with three detachable antennas. A series of status lights line the top, showing power, line sync, Internet connectivity, 2.4GHz, 5GHz, WPS and USB activity.

Archer D9’s integrated Shield Cover reduces interference and priorities traffic for lag-free streaming and gaming as multiple devices and applications connect to the network simultaneously. As a result, the end user benefits from greater bandwidth, increased reliability and enhanced wireless quality for gaming consoles, smart TVs, laptops, smartphones and tablets. Coupled with dual band capability, the next-generation 802.11ac router is equipped to bring out the full potential of the new high end network compatible gadgets increasingly found in the modern home.

The new top-of-the-line router also uses beamforming technology to locate connected devices and target the signal to deliver glitch-free wireless connectivity. Elegant in appearance, the router’s 3 dual-band antennas with high powered signal amplifiers ensure reliable high speed Wi-Fi throughout the whole home. In addition, Gigabit WAN/LAN ports enable ultrafast wired data transfer speeds of up to 1000Mbps and the dual USB ports enable easy sharing of local printers, files music and videos with connected devices on the home network.

TP-LINK includes a mini CD in the package, containing manual, printer software, and an “Easy Setup Assistant”. This is more for those who aren’t familiar with their router’s web UI, and walks the user through ADSL and Wi-Fi settings. Those who go straight to the router’s web UI will also find a quick setup tool, with more options therein.

Tech enthusiasts will love TP-Link’s web interface — it’s Spartan and straightforward. Newbies may find it a bit overwhelming, especially as it pulls no punches on technical language — but this aside, it’s all laid out in a fashion that makes sense and is easy to find what information and settings you need.

Home networks are growing, becoming more sophisticated and complex as savvy consumers purchase the latest expensive wireless smart devices for their home that require reliable Internet access. Home users are increasingly looking for top quality networking solutions that will provide them with the high bandwidth that their expensive gadgets require. This new router will help unleash the full functionality of their gaming consoles and smart TVs, providing a seamless experience for customers who want to watch the latest TV shows whilst browsing the Internet and chatting to friends through social media networks.

TP-LINK AC1900 features:
Wireless and Wired Performance
• Powerful 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
• Supports 802.11ac – The next generation of Wi-Fi, compatible with 802.11n
• Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth
• 3 dual band detachable external antennas and high power amplifiers provide stable signals and optimal wireless coverage
• Beamforming technology brings a more targeted and highly efficient Wi-Fi connection
• USB 3.0 and USB 2.0 – Share a printer locally and files & media with networked devices or remotely via FTP server
• Full shielded Gigabit ports ensure ultrafast data transfer speeds
• Ethernet WAN (EWAN) offers another broadband connectivity option for connecting VDSL, cable or fiber modems
Control and Security
• Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
• Parental Controls allow parents or administrators to establish restricted access policies for children or staff
• IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
• SPI and NAT firewall protects end-user devices from potential attacks from the Internet
• WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
Ease of Use
• Tether APP provides easy network management at your fingertips.
• Easy one-touch WPA wireless security encryption with the WPS button
• Wi-Fi On/Off Button allows users to turn their wireless radio on or off
• Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
• Built-in intelligent auto-detection automatically figures out which connection type to use in a flash
Others
• IPv6 supported, meeting the demands for the next generation of the Internet

Specifications

HARDWARE FEATURES

Interface

1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 3.0 Port / 1 USB 2.0 Port

Button

1 Power On/Off Switch
1 Wi-Fi On/Off Button
1 WPS Button
1 RESET Button

External Power Supply

12VDC/3.3A

IEEE Standards

IEEE 802.3, 802.3u, 802.3ab

ADSL Standards

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

8.7 x 3.4 x 6.6 in. (221 x 86 x 168.5mm)

Hardware Feature

Antenna Type

Three detachable dual band external antennas

Antenna Gain

3 × 2dBi for 2.4GHz and 3 × 3dBi for 5GHz



WIRELESS FEATURES

Frequency

2.4GHz and 5GHz

Transmit Power

<20dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering

Wireless Schedule

Support 2.4GHz and 5GHz Wireless Schedule



SOFTWARE FEATURES

Operating Modes

ADSL Modem Router, Wireless Router

DHCP

Server, Client, DHCP Client List,
Address Reservation, DHCP relay

Quality of Service

ATM QoS, Bandwidth Control

Port Forwarding

Virtual server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSecPassthrough

ATM/PPP Protocols

ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MER\IPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs

Security

NAT Firewall, Access Control, MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death
IP and MAC Address Binding

IPv6

IPv6 and IPv4 dual stack

Advanced Functions

Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/Printer Server

Management

Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools

Management

Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools

Guest Network

2.4GHz guest network × 1
5GHz guest network × 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels

 Software Feature

OTHERS

Certification

CE, FCC, RCM, RoHS

Package Contents

AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter

System Requirements

Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
