Colorful Technology Company Limited, a world-renowned manufacturer of desktop components, laptops, desktops, AIO PCs, and storage, launches the B760 Series motherboards for the 13th Gen and 12th Gen Intel Core processors. The Intel B760 Series motherboards are ideal gaming and content creation with DDR5 and DDR4 memory support depending on model.
COLORFUL introduces the CVN B760M FROZEN WIFI D5 and CVN B760I FROZEN WIFI motherboards for gamers and enthusiasts. Coming in a compact micro-ATX and mini-ITX form factors, both motherboards feature PCIe 5.0 x16 slot to support the latest high-end graphics cards. The CVN B760 motherboards also come with Wi-Fi 6, three PCIe 4.0 M.2 slots for the CVN B760M FROZEN WIFI D5 and two PCIe 4.0 M.2 slots for the CVN B760I FROZEN WIFI mini-ITX motherboard. COLORFUL also presents the BATTLE-AX B760M-F PRO motherboard with DDR4 memory support and two PCIe 4.0 M.2 slots.
The COLORFUL B760 Series motherboards take value on a completely new level compared to the previous generation B660 Series.

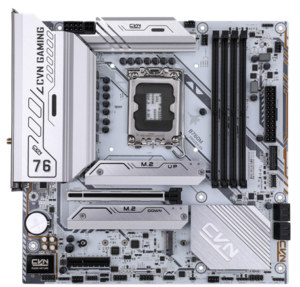

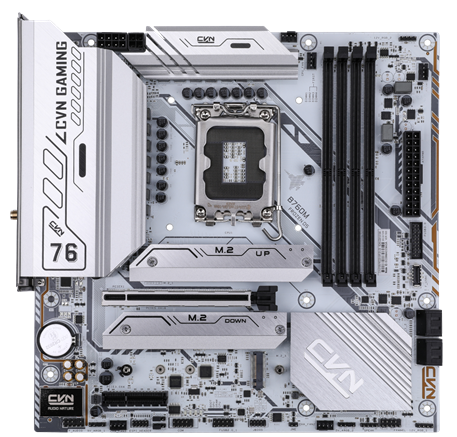

CVN B760M FROZEN WIFI D5
The COLORFUL CVN B760M FROZEN WIFI D5 is the top-of-the-line motherboard model for the B760 Series. It has an enlarged VRM heatsink design to provide excellent cooling even in overclocked configurations. It features a 12+1 power phase design with a steel reinforced PCIe 5.0 X16 slot for high-end graphics card. It also comes with three PCIe 4.0 M.2 slots for high-speed NVMe SSDs. The CVN B760M FROZEN WIFI D5 also features an integrated rear I/O shield so you will not ever forget to install them.
Key Features
- Supports 13th Gen and 12th Gen Intel Core processors
- Intel B760 Chipset
- Micro-ATX motherboard form factor
- Quad-channel DDR5 memory support up to 128GB capacity
- 12+1 Power Phase Design (Dr MOS 55A)
- Metal PCIe 5.0 X16 Slot
- Triple high-speed PCIe 4.0 M.2 slots (with two M.2 Cooling Armor)
- Wi-Fi 6 + BT, 2.5 GbE LAN
Specifications
| CPU | Intel® 13th/12th Generation Core™ Processor |
| Chipset | Intel B760 |
| Power supply phase | 12+1 Power Phase (Dr MOS 55A) |
| Memory | 4x DDR5 DIMM Socket Dual-Channel* Support XMP
*Single memory supports up to 32GB capacity, total memory capacity supports up to 128GB DDR5-6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz MHz Memory Support |
| Expansion Slot | 1xPCIe 5.0 x16, 1xPCIe 3.0 x4 |
| Storage | Support 4x SATA 6Gb/s
Support 3x PCIe 4.0 x4 M.2 SSD* *does not support SATA |
| Internal Connectors | 1x 24-pin ATX Power connector
1x 8-pin+4-pin CPU Power connector 2x Front USB 3.2 Gen 1 Type-A 1x Front USB 3.2 Gen 2 Type-C 2x Front USB 2.0 |
| I/O Ports | 4x USB2.0;
2x USB 3.2 Gen 1 Type-A; 1x USB 3.2 Gen 2 Type-C; 1x HDMI port; 1x DP port; |
| LAN | Realtek 2.5G + Wi-Fi 6, Support Bluetooth |
| Audio | 5.1-Channel High-Definition audio CODEC |
| Dimensions | 245mm x 245mm M-ATX |

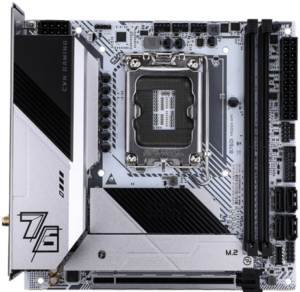

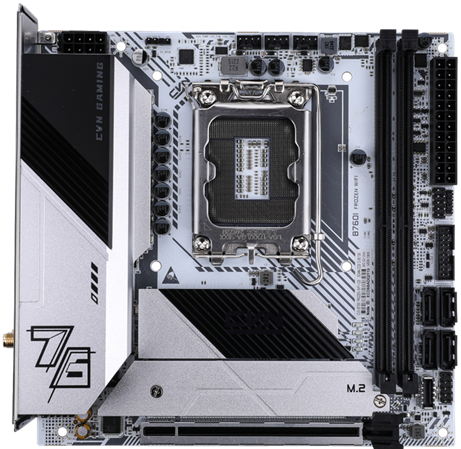

CVN B760I FROZEN WIFI
The COLORFUL CVN B760I FROZEN WIFI mini-ITX motherboard features DDR4 support with Wi-Fi 6 + Bluetooth and 2.5 GbE LAN. This motherboard also comes with a steel reinforced PCIe 5.0 X16 slot designed to support heavy high-end graphics cards like the GeForce RTX 40 Series. The motherboard comes with two PCIe 4.0 M.2 slots with M.2 Cooling Armor for the front slot; second M.2 slot is located at the back of the motherboard. The CVN B760I FROZEN WIFI is ideal for building small form factor gaming PCs. The motherboard also comes with an integrated rear I/O shield.
Key Features
- Supports 13th Gen and 12th Gen Intel Core processors
- Intel B760 Chipset
- Mini-ITX motherboard form factor
- Dual-channel DDR4 memory support up to 64GB capacity
- 7+1+1 Power Phase Design (Dr MOS 30A)
- Metal PCIe 5.0 X16 Slot
- Dual high-speed PCIe 4.0 M.2 slots (with M.2 Cooling Armor for front slot)
- Wi-Fi 6 + BT, 2.5 GbE LAN
Specifications
| CPU | Intel® 13th/12th Generation Core™ Processor |
| Chipset | Intel B760 |
| Power supply phase | 7+1+1 Power Phase (Dr MOS 30A) |
| Memory | 2x DDR4 DIMM Socket Dual-Channel*, Support XMP
*Single memory supports up to 32GB capacity, total memory capacity supports up to 64GB DDR4-4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz Memory Support |
| Expansion Slot | 1xPCIe 5.0 x16 |
| Storage | Support 4x SATA 6Gb/s
Support 2x PCIe 4.0 x4 M.2 SSD* *does not support SATA |
| Internal Connectors | 1x 24-pin ITX Power connector
1x 8-pin CPU Power connector 2x Front USB 3.2 Gen 1 Type-A 1x Front USB 3.2 Gen 1Type-C 2x Front USB 2.0 |
| I/O Ports | 4x USB2.0;
2x USB 3.2 Gen 1 Type-A; 1x USB 3.2 Gen 1 Type-C; 1x HDMI port; 1x DP port; |
| LAN | Realtek 2.5G + Wi-Fi 6, Support Bluetooth |
| Audio | 5.1-Channel High-Definition audio CODEC |
| Dimensions | 170mm x 170mm mini-ITX |

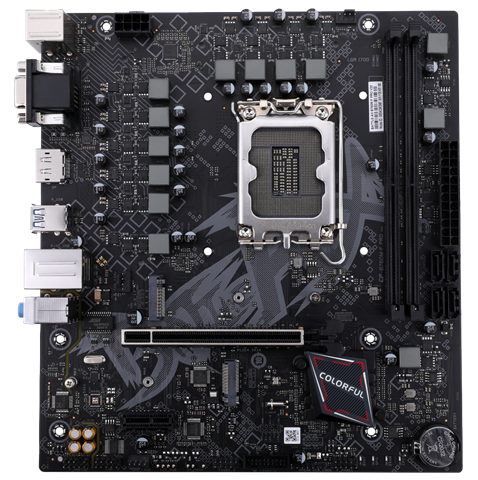

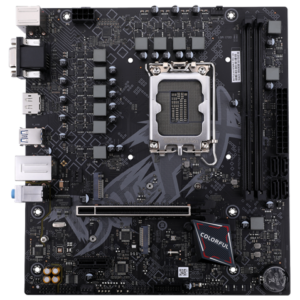

BATTLE-AX B760M-F PRO
The BATTLE-AX B760M-F PRO features dual-channel DDR4 memory support with two PCIe 4.0 M.2 slots for SSDs or M.2 Wi-Fi 6 modules.
Key Features
- Supports 13th Gen and 12th Gen Intel Core processors
- Intel B760 Chipset
- Micro-ATX motherboard form factor
- Dual-channel DDR4 memory support up to 64GB capacity
- 8+1 Power Phase Design (Dr MOS 30A)
- Metal PCIe 4.0 X16 Slot
- Dual high-speed PCIe 4.0 M.2 slots
- GbE LAN
Specifications
| CPU | Intel® 13th/12th Generation Core™ Processor |
| Chipset | Intel B760 |
| Power supply phase | 8+1 Power Phase |
| Memory | 2x DDR4 DIMM Socket Dual-Channel*, Support XMP
*Single memory supports up to 32GB capacity, total memory capacity supports up to 64GB DDR4-4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz Memory Support |
| Expansion Slot | 1x PCIe 4.0 x16, 1x PCIe 4.0 x1 |
| Storage | Support 4x SATA 6Gb/s
Support 2x PCIe 4.0 x4 M.2 SSD* *does not support SATA |
| Internal Connectors | 1x 24-pin M-ATX Power connector
1x 8-pin CPU Power connector 2x Front USB 3.2 Gen 1 Type-A 2x Front USB 2.0 |
| I/O Ports | 4x USB 3.2 Gen 1 Type-A;
2x USB2.0; 1x PS/2 1x HDMI 1.4 port; 1x DP 1.2 port; |
| LAN | RTL8111H Gigabit LAN |
| Audio | 5.1-Channel High-Definition audio CODEC |
| Dimensions | 230mm x 230mm micro-ATX |
Availability
The COLORFUL B760 Series motherboards are now shipping to partner resellers and coming to official stores this Q1 2023.
