- GALAHAD II TRINITY and GALAHAD II TRINITY SL-INF are equipped with a 3200RPM pump, and 27mm thick radiator, and 25mm thick RGB fans
- GALAHAD II TRINITY PERFORMANCE is equipped with a 4200RPM pump, 32mm radiator with double wave fin design, and 28mm thick high-performance fans
- Includes 3 pump block caps for personalization: Duo Infinity, Sink Hole, and Dazzle Mode
- 45° angled fittings at the radiator for 360° rotation
- Redesigned pump copper plate, seal liquid pathways, and impeller
- Pre-installed fans for quick setup
- Includes thermal paste, control film, and spreader
LIAN LI Industrial Co. Ltd., a leading manufacturer of chassis and PC accessories, launches its next generation of AIO liquid cooling, the GALAHAD II TRINITY series. 3 models are available with the GALAHAD II TRINITY, GALAHAD II TRINITY SL-INF, and GALAHAD II TRINITY PERFORMANCE. The TRINITY series comes with 3 swappable caps for personalization of the pump block and 45-degree rotary fittings at the radiator for easy tube orientation. The GALAHAD II TRINITY comes in 240 and 360 sizes, equipped with pre-installed RGB fans with seamless cable interconnectivity, the GALAHAD II TRINITY SL-INF comes in 240 and 360 sizes, equipped with pre-installed UNI FAN SL INFINITY fans and controller. The GALAHAD PERFORMANCE is available in 360 size, equipped with pre-installed 28mm thick high-performance LCP fans with seamless cable interconnectivity, a 32mm thick radiator with double wave fin design and a 4200RPM pump.
GALAHAD II TRINITY
The GALAHAD II TRINITY is available in black and white, and equipped with ARGB PWM fans that can be daisy-chained by a single short cable that can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and equipped with Fluid Dynamic Bearings for stable and quiet operations. The radiator is 27mm in thickness and is available in sizes of 240 and 360. The pump and fans can be controlled via the motherboard by using the standard PWM and ARGB cable included, or connected directly to the AIO pump block to be synchronized via L-Connect 3.
GALAHAD II TRINITY SL-INF
Designed with the same pump block and 240 or 360 radiator as the GALAHAD II TRINITY, the GALAHAD II TRINITY SL-INF is available in black, and white and comes with UNI FAN SL120 INFINITY pre-installed.
GALAHAD II TRINITY PERFORMANCE
Only available in size of 360, the GALAHAD II TRINITY PERFORMANCE is equipped with a 130mm wide radiator that’s 32mm in thickness and features a dual wave fin design to increase the surface area for extra heat dissipation. It comes with pre-installed Liquid Crystal Polymer fans that can also be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 28mm in thickness and is equipped with Fluid Dynamic Bearings for stable and quiet operations. The fan features 2 modes: High for performance-oriented results, and Low for noise-optimized results, which can be selected manually with the included RPM switch controller. The fans can be alternatively connected directly to the motherboard for PWM control via the BIOS, or via an included cable, connected directly to the AIO pump block for L-Connect 3 speed control, and can be upgraded with the UNI FAN P28 Side ARGB kit to add more RGB elements to the system
Redesigned Pump Block
The GALAHAD II series has been redesigned to ensure better performance. The copper cold plate features increased skived fin spacing to prevent debris buildup over time. To make up for the loss in fin density, the fin’s height and thickness have been increased. In addition, a trench has been implemented down the middle of the skived fins for better diffusion of the coolant over the entire surface area of the copper plate. The copper plate seal has also been revised with straightened pathways, reducing turbulence and increasing the water flow. For the GALAHAD II TRINITY PERFORMANCE only, the pump impeller has been increased from 31.4mm to 36mm in diameter and features a larger motor with speeds of up to 4200RPM (3200RPM for the GALAHAD II TRINITY II and GALAHAD TRINITY II SL-INF), controllable directly via L-Connect 3. The impeller features a 7-blade design, compared to 5 for the GALAHAD I to ensure a strong water flow.
Personalization
The pump cap can be easily customized with the 3 included swappable pump covers. This results in an array of lighting effects all controlled via L-Connect 3. Users can opt for the Duo Infinity cap for an aluminum housing with 2 infinity RGB rings at the top and a thin RGB ring at the base of the cap. The Sink Hole cap offers a diffused outer frame and an infinity RGB ring at the center. The Dazzle cap is an all-diffused cap with two separately controllable LED zones.
Ease of use
The GALAHAD II TRINITY series is designed to provide the simplest installation and customization experience. The radiator is designed with 45-degree rotary fittings to make the routing of the tubes and installation easier. The fittings can be rotated a full 360 degrees for adjusting the tube’s orientation. To ensure a perfect thermal paste application, the GALAHAD II TRINITY series comes with a thermal paste control film and spreader that ensures the best application of the paste for full and even coverage of the CPU, resulting in maximum heat transfer.
The GALAHAD II TRINITY series is available for pre-order starting July 20th, 2023.

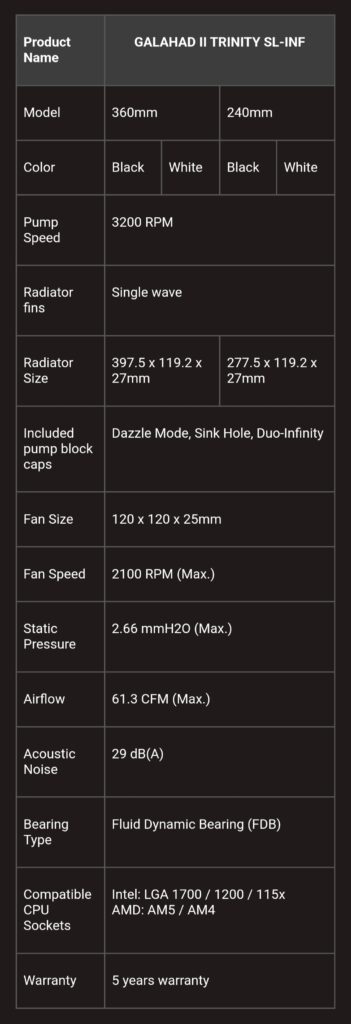

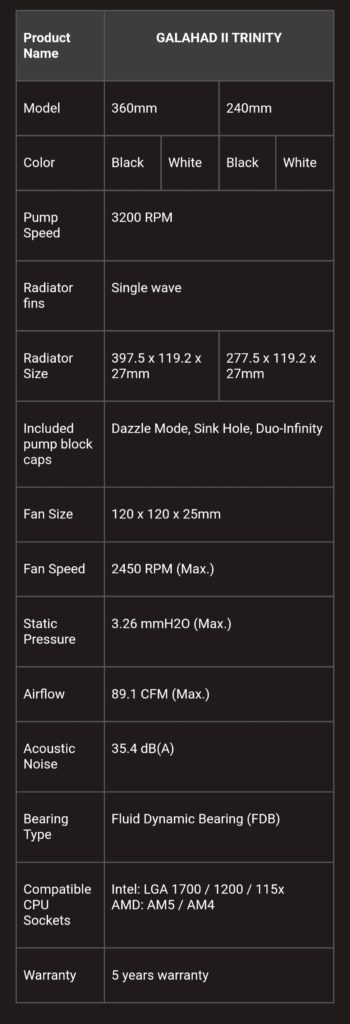

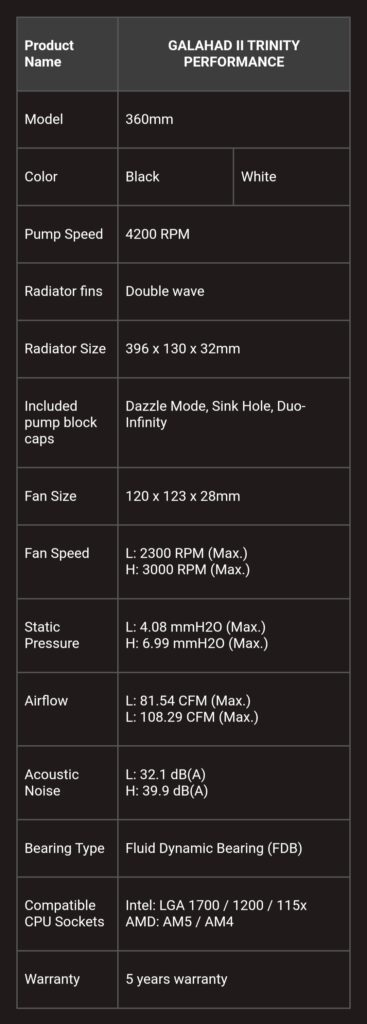

Specifications
